Glavne Karakteristike :
Output Power per Channel - 150W
Impedance at Output Level - 6Ω
Number of Channels - 7
Input Connections
• 1 x MHL HDMI (Front)
• 7 x HDMI
• 4 x Composite
• 1 x Digital Coaxial (Assignable)
• 1 x Digital Optical (Assignable)
• 1 x USB 2.0 host (iPod/iPhone Digital Audio, USB drive)
• 1 x Ethernet
• 1 x Bluetooth adapter port for AS-BT200
• 1 x rear USB charge port for AS-WL300 Wireless Converter
Output Connections:
• 1 x Monitor Composite
• 2 x HDMI
• 1 x Composite
• 1x preout Subwoofer
• 7x speaker out
• 1 x Phones out
HD Audio Formafts:
Dolby TrueHD, DTS-HD Master Audio
Audio Return Channel - da
4K Pass Through - da
DLNA Certified (+) - da
On-Screen Display (GUI) OSD Analog only in English
Remote Control- da
Eco Mode - da

Ulazne i Izlazne konekcije :
Bi-Amplifier - da
Bluetooth Adapter Port (+) - da
Component Video Input/Output - 1/- (assignable)
Composite Input/Output - 3/1
Digital Optical Input/Output - 1/- (assignable)
Digital Coaxial Input/Output - 1/- (assignable)
Ethernet (+) - 1
HDMI Front Input
HDMI Input/Output7 (assignable)/2
Headphone - da
IR In/Out (+) - 1/1
Large speaker terminals - da
Pre-amp Output - 2 SW
Speaker A/B - Versatile speaker configuration
USB Host (Front) (+) - da

Apps :

iControlAV2013 - da
Air Jam - da
Spotify Connect (+) - da
AVNavigator - da (for PC i iPad)

Apple kompatibilnost :
Works with iPod - da
Works with iPhone - da
Compatible Generations:
• iPad mini
• iPhone 5,iPhone 4S
• iPhone 4,iPhone 3GS
• iPhone 3G
• iPod touch 5G/4G/3G/2G/1G
• iPod classic
• iPod nano 7G/6G/5G/4G/3G
Supported Functions
• Audio & video playback
• On-screen album art
• Charging

Mrežne karakteristike :
Wireless LAN - da (with optional AS-WL300 adapter)

Surround zvuk formati :
Dolby Digital (+) - da
Dolby Digital EX (+) - da
Dolby Digital Plus (+) - da
Dolby Pro Logic II (+) - da
Dolby Pro Logic IIx (+) - da
Dolby Pro Logic IIz (+) - da
Dolby True HD (+) - da
DTS (+) - da
DTS-ES (+) - da
DTS Neo X - da
DTS 96/24 (+) - da
DTS-Express (+) - da
DTS-HD High Resolution Audio (+) - da
DTS-HD Master Audio (+) -da
Surround Modes (+)11 + 1 for Phones

Audio karakteristike :

AM/FM Tuner with RDS - da
Tuner Pre-set Stations - 30
Auto Level Control (+) - (multi channel)
Auto Surround - da
DSD-to-PCM Convertor - (multi channel)
Dynamic Range Control - da
Headphone Surround - da
Front Stage Surround Advance (+) - da
Loudness (+) - da
Midnight Listening Mode (+) - da
Phase Control (+) -da
MCACC (+) - da (advance, 9-band)
Sound Delay (LipSync) (+) - da
Advanced Sound Retriever (+) - (2 channel)
Stream Direct (+) - da
Symmetric EQ (+) - da
PQLS (+) - multi-chanel
Virtual Depth - da
Virtual Surround Back (+) - da
Virtual Height - da
Virtual Wide - da
X-Curve (+) - da
Multizone Function (+) - 2

Video karakteristike :
Deep Colour (+) -da
3D Ready - da
x.v.Colour (+) - da
HD Digital Film Direct 24 (+) - da
Upscaling to 1080p - da
Advanced Video Adjust - da
PureCinema - da
Stream Smoother - da
HDMI Standby Through - da
HDMI Standby Input Switching - da

Snaga izlazna :
Power output per channel - 130W
Condition - 1kHz, 1% THD, 6Ω
Rated Power Output - 150W per channel
Power Requirements - AC 220 - 230 V / 50/60 Hz
Power Consumption (in use / standby) - 550 W / 0,1 W
Auto Power Down - da

Specifikacije pojačala:
Digital Signal Processor - Texas Instruments AureusTM TMS320DA788
D/A Converter - 192 kHz / 24-bit
A/D Converter - 96 kHz / 24-bit
Dimensions (V x H x D) - 435 x 168 x 331.5 mm
Weight - 9.7 kg

Proizvođač: Pioneer

Model: VSX923S

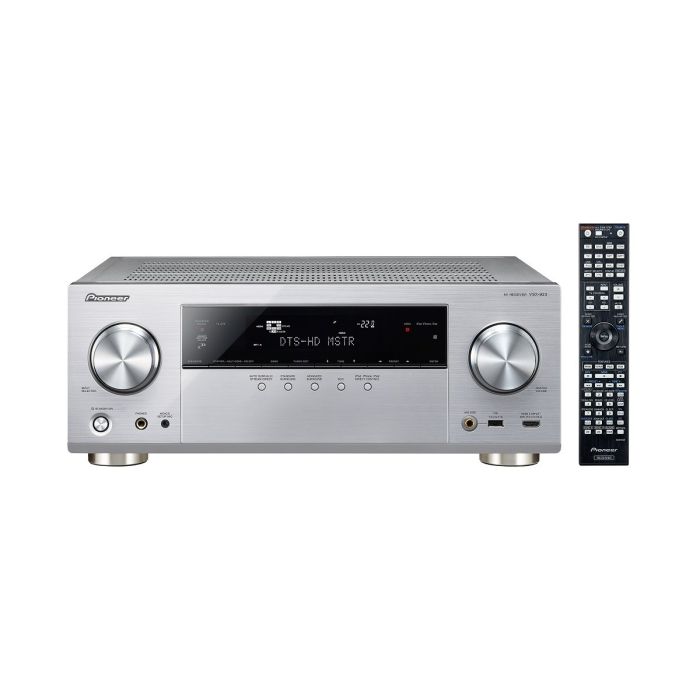

Naziv i vrsta robe: Pioneer VSX-923-S AV Receiver 7.2

Zemlja porekla: Japan

Uvoznik: Precizan podatak o uvozniku dostupan je na deklaraciji proizvoda

Prava potrošača: Zagarantovana sva prava kupaca po osnovu Zakona o zaštiti potrošača Republike Srbije
