Glavne karakteristike :
Direct Energy HD amplifier- da
Output Power per Channel - 190W
Impedance at Output Level - 6Ω
Number of Channels - 9
4Ω zvučnar podrška - da
Ulazne konekcije :
• 9 x HDMI
• 1 x MHL HDMI (Front)
• 4 x Composite
• 2 x Component
• 2 x Coaxial (assignable)
• 2 x Optical (assignable)
• 1 x USB 2.0 host (iPod/iPhone/iPad Digital Audio, USB drive)
• 1 x iPod/iPhone Digital via USB
• 1 x Ethernet
• 1 x Bluetooth adapter port for AS-BT200
• 1 x rear USB charge port for AS-WL300 Wireless Converter
Izlazne konekcije :
• 3 x HDMI (selectable for MAIN ZONE/HDZONE)
• 1 x Monitor Composite
• 1 x Composite
• 1 x Component
• 1 x Optical
• 2x preout Subwoofer
• 9x speaker out
• 1 x Phones out
File Playback - Via LAN / USB:
• MP3, WAV, AAC, WMA, FLAC, AIFF, Apple Lossless, DSD (USB only)

192 kHz/24-Bit Audio playback:
• WAV
• FLAC
• AIFF
MHL Terminal za Android Smartphones - da
I/P Control for CI - da
HD Audio Formafts:
• Dolby TrueHD
• DTS-HD Master Audio
• DTS-HD High Resolution
Audio Return Channel - da
Stand-by Pass Through - da
4K Pass Through - da
4K Upscaling - da
Control with HDMI (+) - da
On-Screen Display (GUI)7 languages via HDMI only:
• English
• Dutch
• French
• German
• Italian
• Spanish
• Russian
Firmware updates (via Internet or USB)
AVNavigator - da
Internet Radio - da
vTuner - da
DLNA Certified (+) (v1.5)
Windows 7 Certified - da
Windows 8 Certified - da
Remote Control - Illuminated, learning remote control
Eco Mode - da

Ulazne i Izlazne konekcije :
Bi-Amplifier - da
Bluetooth Adapter Port (+) - da
Component Video Input/Output - 2/1 (assignable)
Composite Input/Output - 4/2 (1 for Zone 2 + 1 for monitor)
Digital Optical Input/Output - 2/1 (assignable)
Digital Coaxial Input/Output - 2/- (assignable)
Ethernet (+) - 1
HDMI Front Input - da
HDMI Input/Output - 9 (1 front, 8 rear assignable) / 3 (Main, HDzone)
HDMI version - 1.4b
Headphone - da
IR In/Out (+) - 2/1
Large speaker terminals - da
Pre-amp Output - All (11.2 ch)
RS-232C - da
Speaker A/B - Versatile speaker configuration
USB Host (Front) (+) - da

Apps :
iControlAV2013 - da
Air Jam -
AVNavigator - za PC & iPad

Apple kompatibilnost :
Works with iPod
Works with iPhone
Works with iPad
AirPlay
iPhone Control Button (+)
Compatible Generations• Pad 4G(*)/3G
• iPad2,iPad
• iPad mini(*)
• iPhone 5(*),iPhone 4S
• iPhone 4,iPhone 3GS
• iPhone 3G,iPhone
• iPod touch 5G(*)/4G/3G/2G/1G
• iPod nano 7G(*)/6G(*)/5G/4G/3G
(*) : Audio only
Supported Functions:
• Audio & video playback
• On-screen album art
• Charging

Mrežne funkcije :
Wireless LAN - da (konverter uključen)

Surround zvuk formati :

Dolby Digital (+) - da
Dolby Digital EX (+) - da
Dolby Digital Plus (+) - da
Dolby Pro Logic II (+) - da
Dolby Pro Logic IIx (+) -da
Dolby Pro Logic IIz (+) - da
Dolby True HD (+) - da
DTS (+) - da
DTS-ES (+) - da
DTS Neo X - da
DTS 96/24 (+) - da
DTS-Express (+) - da
DTS-HD High Resolution Audio (+) - da
DTS-HD Master Audio (+) - da
THX Certified (+) - (THX Select2 Plus)
Surround Modes (+) - 11 + 1 for Phones

Audio funkcije :
AM/FM Tuner with RDS - da
Tuner Pre-set Stations - 63
Auto Level Control (+) - (Multi-channel)
Auto Surround - da
Dialogue Enhancement (+) - da
Digital Noise Reduction (+) - da
DSD-to-PCM Convertor - (Multi-channel)
Dynamic Range Control - da
Headphone Surround - da
Front Stage Surround Advance (+) - da
Phase Control (+) - da
Auto Phase Control Plus - da
Full Band Phase Control (+) - da
MCACC (+) - (Advanced, 9-band)
PQLS (+) - Bit-stream / Multi-surround / 2-channel
Sound Delay (LipSync) (+) - da
Advanced Sound Retriever (+) - (Multi-channel)
Sound Retriever AIR (+) - da
Sound Retreiver link - da
Standing Wave Control (+) - da
Stream Direct (+) - da
Symmetric EQ (+) - da
Virtual Depth - da
Virtual Surround Back (+) - da
Virtual Height -da
Virtual Wide - da
X-Curve (+) - da
Audio Scaler - da

Video karakteristike :
Deep Colour (+) - da
3D Ready - da
x.v.Colour (+) - da
HD Digital Film Direct 24 (+) - da
Upscaling to 1080p - da
Advanced Video Adjust - da
PureCinema - da
Stream Smoother - da
HDMI Standby Through - da
HDMI Standby Input Switching - da

Snaga izlaza :
Power output per channel - 190W
Condition - 1kHz, 1% THD, 6Ω
Rated Power Output - 190W per channel
Power Requirements - 220–230 V, 50/60 Hz
Power Consumption (in use / standby) - 330 W / 0.1 W
Auto Power Down - da

Konstrukcija :
Advanced Direct Construction - da

Specifikacije pojačala :
Digital Signal Processor - 2 x Texas Instruments Aureus(TM) TMS320DA808
D/A Converter - 192 kHz / 32-bit
A/D Converter - 192 kHz / 24-bit
Dimenzije (V x H x D) - 435 x 185 x 441 mm
Težina - 15.2 kg

Proizvođač: Pioneer

Model: SCLX57K

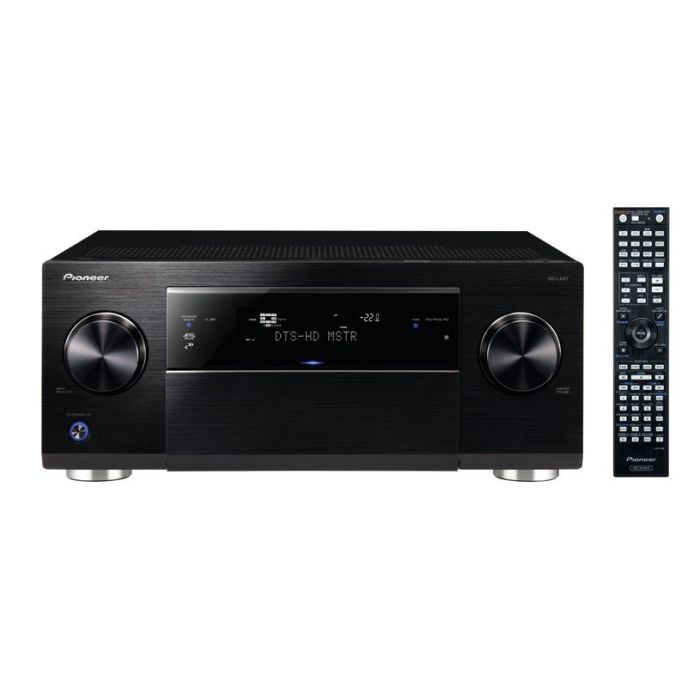

Naziv i vrsta robe: Pioneer SC-LX57-K AV Receiver 9.2

Zemlja porekla: Japan

Uvoznik: Precizan podatak o uvozniku dostupan je na deklaraciji proizvoda

Prava potrošača: Zagarantovana sva prava kupaca po osnovu Zakona o zaštiti potrošača Republike Srbije
